Precision Biomarker Intelligence Agent

Part of the Precision Intelligence Network — one of 11 specialized agents sharing a common molecular foundation within the HCLS AI Factory.

Genomics-informed biomarker interpretation with 9 clinical analysis engines. Part of the HCLS AI Factory.

Overview

The Precision Biomarker Intelligence Agent transforms raw lab results into clinically actionable intelligence by combining multi-collection RAG search with deterministic clinical engines. It integrates patient genotype data (ApoE, MTHFR, CYP variants), pharmacogenomic star alleles, and age/sex-stratified reference ranges to produce personalized interpretations that a standard lab report cannot provide.

Collection Records Content
Biomarker Reference 208 Comprehensive biomarker definitions, units, and clinical significance
Genetic Variants 42 Clinically actionable SNPs with risk alleles and effect sizes
PGx Rules 29 CPIC Level 1A pharmacogenomic guidelines
Disease Trajectories 39 Multi-biomarker risk patterns for 9 disease domains
Clinical Evidence 80 Published clinical study evidence for biomarker interpretation
Nutrition 50 Nutrient-biomarker interactions and dietary recommendations
Drug Interactions 51 Medication effects on biomarker levels
Aging Markers 20 PhenoAge and GrimAge epigenetic clock biomarkers
Genotype Adjustments 30 Genotype-specific reference range modifications
Monitoring 30 Follow-up testing schedules and monitoring protocols
Critical Values 21 Threshold rules for critical/urgent/warning alerts
Discordance Rules 12 Cross-biomarker discordance detection patterns
AJ Carrier Screening 10 Ashkenazi Jewish genetic carrier screening panel
Genomic Evidence 30 (read-only) Shared from Stage 2 RAG pipeline
Total 652 vectors 14 collections (13 owned + 1 read-only)

9 Clinical Analysis Engines

Engine Function
BiologicalAgeCalculator PhenoAge (Levine 2018) and GrimAge (Lu 2019) composite scoring with confidence intervals
DiseaseTrajectoryAnalyzer 9-domain risk stratification (cardiovascular, diabetes, liver, thyroid, iron, nutritional, kidney, bone, cognitive)
PharmacogenomicMapper CPIC Level 1A star allele and genotype-to-phenotype mapping for 13 genes
GenotypeAdjuster Genotype-aware reference range modifications + age-stratified adjustments (5 brackets)
CriticalValueEngine Real-time critical/urgent/warning threshold detection with escalation routing
DiscordanceDetector Cross-biomarker pattern analysis for clinically discordant results
LabRangeInterpreter Three-way comparison: Quest vs LabCorp vs Function Health optimal ranges
AJ Carrier Screening Ashkenazi Jewish population-specific genetic carrier screening (via RAG)
Age-Stratified Adjustments Sex-stratified reference ranges across 5 age brackets (0-17, 18-39, 40-59, 60-79, 80+)

Example Queries

"Interpret my LDL of 138 given ApoE E3/E4 genotype"
"What does MTHFR C677T heterozygous mean for my homocysteine levels?"
"CYP2D6 *1/*4 — which medications should I avoid?"
"How does my HbA1c of 5.6 with TCF7L2 CT genotype affect diabetes risk?"
"My ferritin is 28 — is this normal for a 38-year-old female?"

Demo Guide

For a complete walkthrough of all 8 UI tabs with both sample patients, see the Demo Guide.

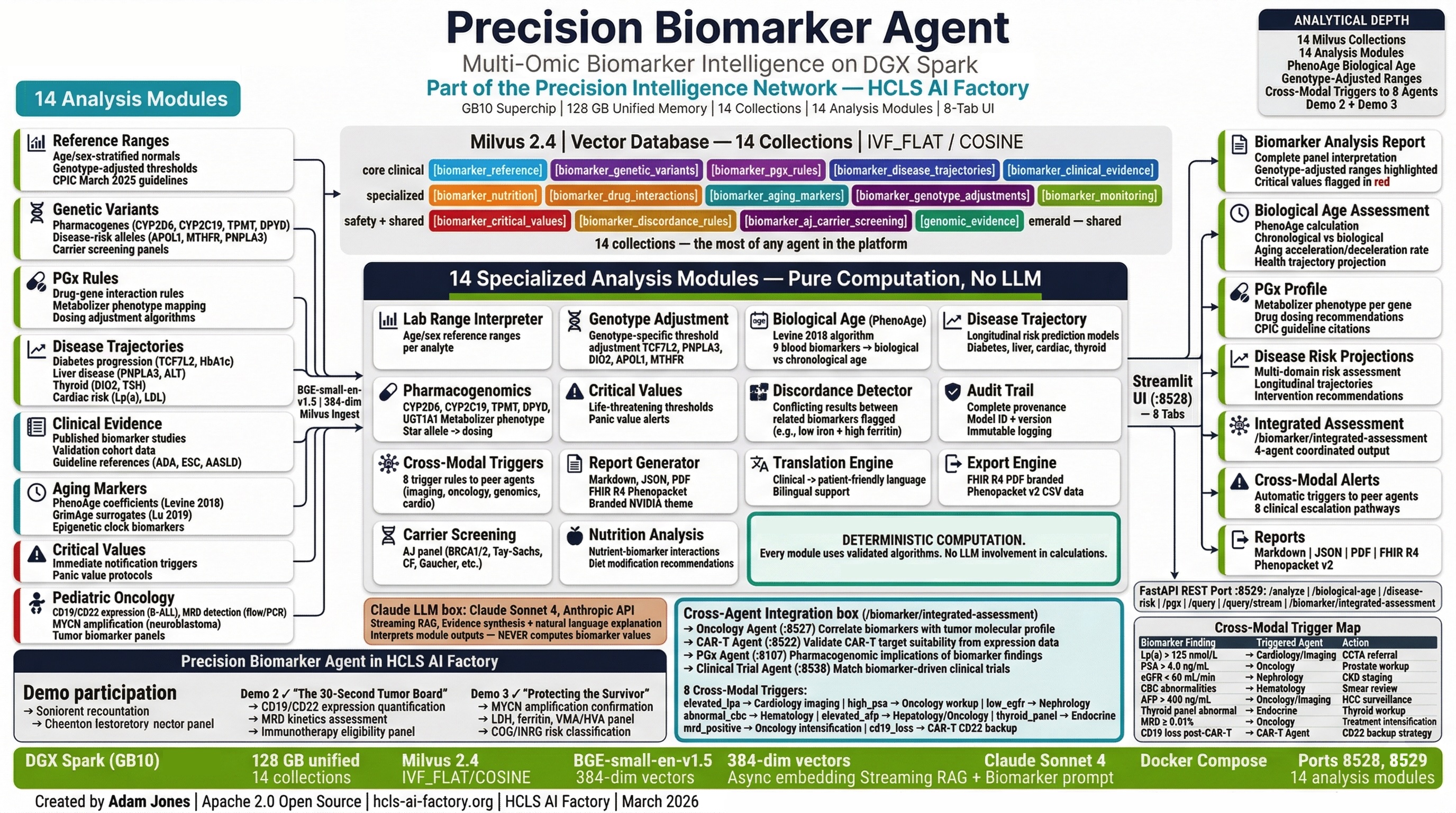

Architecture

Patient Data Input
    |
    v
[Critical Value Engine] ──── CRITICAL? ──── YES ──> Immediate Alert
    |                                                (escalation routing)
    NO
    |
    v
[9 Clinical Analysis Engines — Parallel Execution]
    |               |              |              |
    v               v              v              v
BiologicalAge   Disease       Pharmaco-      Genotype
Calculator      Trajectory    genomic        Adjuster
(PhenoAge +     Analyzer      Mapper         (age-stratified
 GrimAge)       (9 domains)   (13 genes)      ranges)
    |               |              |              |
    +-------+-------+--------------+--------------+
            |
            v
    [Multi-Collection RAG Engine]
    Parallel search across 14 Milvus collections
    (ThreadPoolExecutor, configurable weights)
            |
            v
    [Claude Sonnet 4.6] -> Grounded response with citations
            |
            v
    [Export: FHIR R4 | PDF | Markdown | CSV]

Built on the HCLS AI Factory platform:

  • Vector DB: Milvus 2.4 with IVF_FLAT/COSINE indexes (nlist=1024, nprobe=16)
  • Embeddings: BGE-small-en-v1.5 (384-dim)
  • LLM: Claude Sonnet 4.6 (Anthropic API)
  • UI: Streamlit 8 tabs (port 8528) | API: FastAPI (port 8529)
  • Hardware target: NVIDIA DGX Spark ($3,999)

UI Tabs

# Tab Content
1 Biomarker Analysis Critical alerts, discordance, lab range comparison, full analysis
2 Biological Age PhenoAge + GrimAge with aging drivers and confidence intervals
3 Disease Risk 9-domain risk cards with genotype integration
4 PGx Profile Star allele and genotype-to-drug mapping (13 genes)
5 Evidence Explorer RAG search across 14 collections with collection filtering
6 Reports FHIR R4, PDF, Markdown, CSV export with validation
7 Patient 360 Unified cross-agent dashboard (genomics + biomarkers + drugs)
8 Longitudinal Multi-visit biomarker trending and trajectory analysis

Setup

Prerequisites

  • Python 3.10+
  • Milvus 2.4 running on localhost:19530
  • BIOMARKER_ANTHROPIC_API_KEY environment variable (or in .env)

Install

cd ai_agent_adds/precision_biomarker_agent
pip install -r requirements.txt

1. Create Collections and Seed Reference Data

python3 scripts/seed_all.py

Creates 14 Milvus collections with IVF_FLAT indexes and seeds 652 vectors from 14 JSON reference files.

2. Validate Data Layer

python3 scripts/validate_e2e.py

Tests collection existence, vector counts, embedding search, and cross-collection queries.

3. Run Demo Validation

python3 scripts/demo_validation.py

Runs 65 checks across all 8 UI tabs: critical values, discordance detection, lab ranges, biological age (PhenoAge/GrimAge), disease trajectories (9 domains), pharmacogenomics (CYP2D6/CYP2C19), FHIR export with validation, genotype adjustments, and sample patient data integrity.

4. Run Unit Tests

python3 -m pytest tests/ -v

709 tests covering all modules: critical values (29), discordance (25), lab ranges (36), collections (125), UI (44), RAG engine, edge cases, and more.

5. Launch UI

streamlit run app/biomarker_ui.py --server.port 8528

6. Launch API (separate terminal)

uvicorn api.main:app --host 0.0.0.0 --port 8529

Project Structure

precision_biomarker_agent/
├── src/
│   ├── models.py                  # Pydantic data models (20+ models)
│   ├── collections.py             # 14 Milvus collection schemas + manager
│   ├── rag_engine.py              # Multi-collection RAG engine + Claude
│   ├── agent.py                   # PrecisionBiomarkerAgent orchestrator
│   ├── biological_age.py          # PhenoAge + GrimAge calculators
│   ├── disease_trajectory.py      # 9-domain risk stratification
│   ├── pharmacogenomics.py        # CPIC PGx mapper (13 genes)
│   ├── genotype_adjustment.py     # Genotype + age-stratified adjustments
│   ├── critical_values.py         # Critical/urgent/warning threshold engine
│   ├── discordance_detector.py    # Cross-biomarker discordance detection
│   ├── lab_range_interpreter.py   # Quest vs LabCorp vs optimal ranges
│   └── export.py                  # FHIR R4, PDF, Markdown, CSV export
├── app/
│   └── biomarker_ui.py            # Streamlit UI (8 tabs, ~1,700 lines)
├── api/
│   └── main.py                    # FastAPI REST server
├── config/
│   └── settings.py                # Pydantic BaseSettings (14 collection weights)
├── data/
│   └── reference/
│       ├── biomarker_reference.json           # 208 biomarker definitions
│       ├── biomarker_genetic_variants.json     # 42 clinically actionable SNPs
│       ├── biomarker_pgx_rules.json           # 29 CPIC pharmacogenomic rules
│       ├── biomarker_disease_trajectories.json # 39 disease trajectory patterns
│       ├── biomarker_clinical_evidence.json    # 80 clinical evidence records
│       ├── biomarker_nutrition.json            # 50 nutrient-biomarker interactions
│       ├── biomarker_drug_interactions.json    # 51 drug-biomarker effects
│       ├── biomarker_aging_markers.json        # 20 epigenetic clock markers
│       ├── biomarker_genotype_adjustments.json # 30 genotype-specific adjustments
│       ├── biomarker_monitoring.json           # 30 follow-up protocols
│       ├── biomarker_critical_values.json      # 21 critical value rules
│       ├── biomarker_discordance_rules.json    # 12 discordance patterns
│       ├── biomarker_aj_carrier_screening.json # 10 AJ carrier screening records
│       ├── biomarker_genomic_evidence.json     # 30 genomic evidence records
│       ├── biomarker_lab_ranges.json           # Multi-lab reference ranges
│       └── biomarker_sample_patients.json      # 2 sample patients (Male 45, Female 38)
├── scripts/
│   ├── seed_all.py                # Seed all 14 Milvus collections
│   ├── validate_e2e.py            # End-to-end data layer validation
│   └── demo_validation.py         # 65-check demo validation script
├── tests/
│   ├── conftest.py                # Shared fixtures (mock collections, patients)
│   ├── test_critical_values.py    # 29 tests
│   ├── test_discordance_detector.py # 25 tests
│   ├── test_lab_range_interpreter.py # 36 tests
│   ├── test_collections.py        # 125 tests
│   ├── test_ui.py                 # 44 tests
│   ├── test_rag_engine.py         # RAG engine tests
│   └── test_edge_cases.py         # Edge case coverage
├── docker-compose.yml
├── Dockerfile
├── requirements.txt
└── LICENSE                        # Apache 2.0

57 Python files | ~29,000 lines | Apache 2.0

Performance

Measured on NVIDIA DGX Spark (GB10 GPU, 128GB unified memory):

Metric Value
Seed all 14 collections (652 vectors) ~2 min
Vector search (14 collections, top-5 each) 10-18 ms (cached)
PhenoAge + GrimAge calculation <100 ms
Disease trajectory analysis (9 domains) <200 ms
Pharmacogenomic mapping (all genes) <50 ms
Critical value check (21 rules) <10 ms
Full RAG query (search + Claude) ~20-30 sec
FHIR R4 export + validation <500 ms
Demo validation (65 checks) ~15 sec
Unit tests (709 tests) ~45 sec

Status

  • Phase 1 (Scaffold) -- Complete. Architecture, data models, 14 collection schemas, 9 clinical engines, RAG engine, agent orchestrator, and Streamlit UI.
  • Phase 2 (Data) -- Complete. 652 vectors seeded across 14 Milvus collections from curated reference JSON files. 2 sample patients with full biomarkers, genotypes, star alleles, and clinical context.
  • Phase 3 (Integration) -- Complete. Full RAG pipeline with Claude generating grounded, genotype-aware interpretations. FHIR R4 export with structural validation.
  • Phase 4 (Testing) -- Complete. 709 unit tests passing. 65-check demo validation covering all 8 UI tabs. End-to-end data layer validation.
  • Phase 5 (Demo Ready) -- Complete. Production-quality Streamlit UI with 8 tabs, sample patient auto-load, critical alert banners, and multi-format export.

Credits

  • Adam Jones
  • Apache 2.0 License

Clinical Decision Support Disclaimer

This agent is a clinical decision support research tool. It is not FDA-cleared and is not intended as a standalone diagnostic device. All recommendations should be reviewed by qualified healthcare professionals. Apache 2.0 License.
